Kit NamePart #DescriptionPrice US $

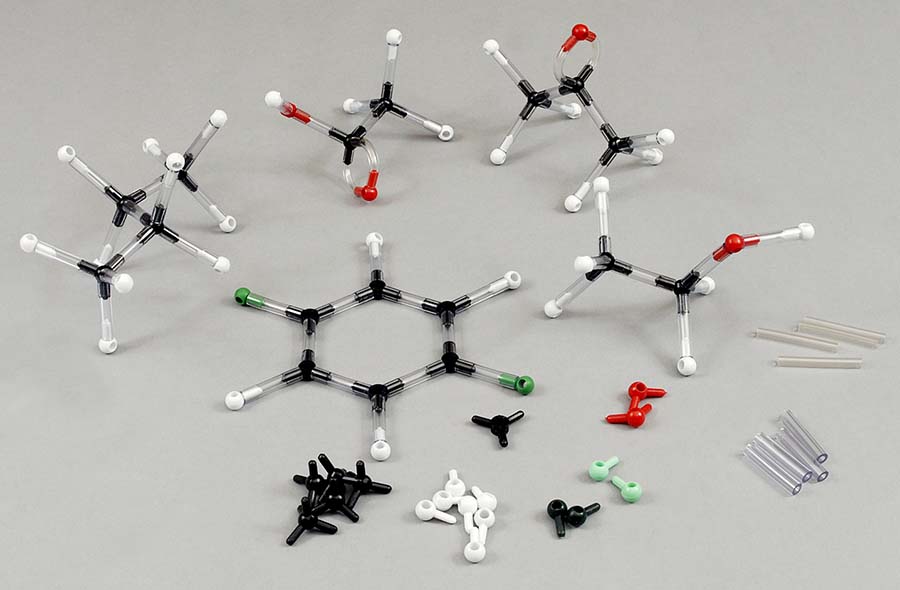

ORGANIC CHEMISTRY
ORG-1Kit Contents:
16 black 4-peg carbon atom centers
7 black 3-peg carbon atom centers
6 red 2-peg oxygen atom centers
37 white 1-peg hydrogen atom centers
2 green 1-peg chlorine atom centers
2 dark green 1-peg bromine atom centers
2 light green 1-peg fluorine atom centers
50-1.25" PVC, clear bonds (single bonds)
8-1.625" PVC, clear bonds (double bonds)
Lab procedure, student response form, and answer key

Using molecular models, three procedures, which may be run as separate labs, are performed by students using this kit. In the first exercise, students model, write molecular and structural formulas, and name some alkanes, alkenes, and alkynes. The second lab deals with modeling, writing molecular and structural formulas, and naming halogenated compounds, alcohols, aldehydes, ketones, and carboxylic acids.

In the last procedure, students make five esters, using common acids and alcohols.*

*Chemicals not included.
$22.00

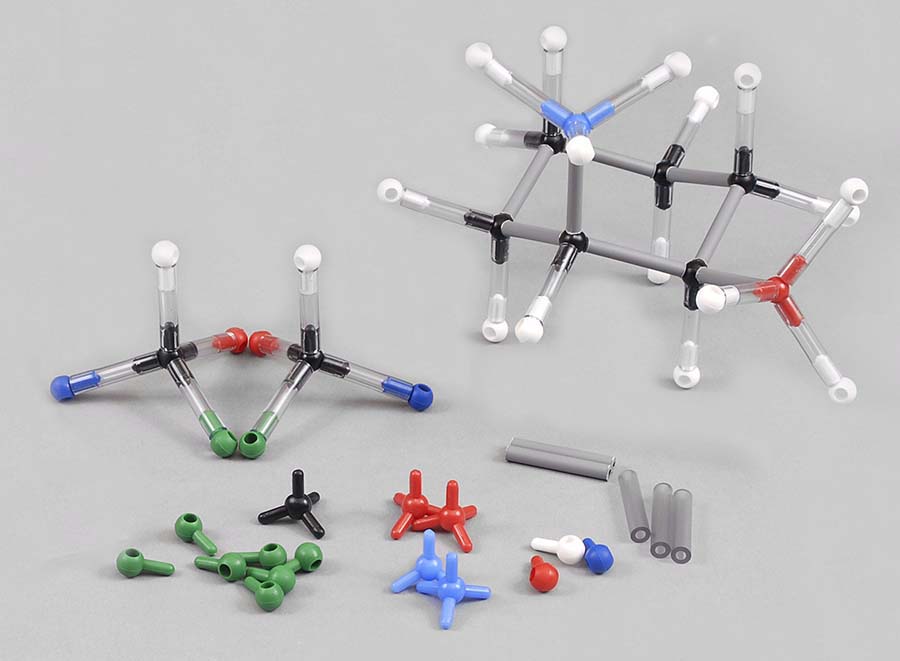

ORG-2
ORG-2Kit Contents:
9 black 4-peg carbon atom centers
3 red 4-peg atom centers
3 blue 4-peg atom centers
3 red 1-peg atom centers
8 green 1-peg atom centers
3 blue 1-peg atom centers
18 white 1-peg hydrogen atom centers
26-1.25" PVC, clear bonds
10-1.25" grey, rigid bonds (for rotation)
Instructions

Students can use the accompanying 30 page booklet and the model parts, in class or on their own, to learn stereochemistry. Included are 15 exercises: for example, Eclipsed and staggered conformers, Ring strain, Equatorial and axial positions (in cyclohexane), Chirality, Determining (R) an (S) forms, Diastereomers, Meso compounds, to name a few.
$12.00

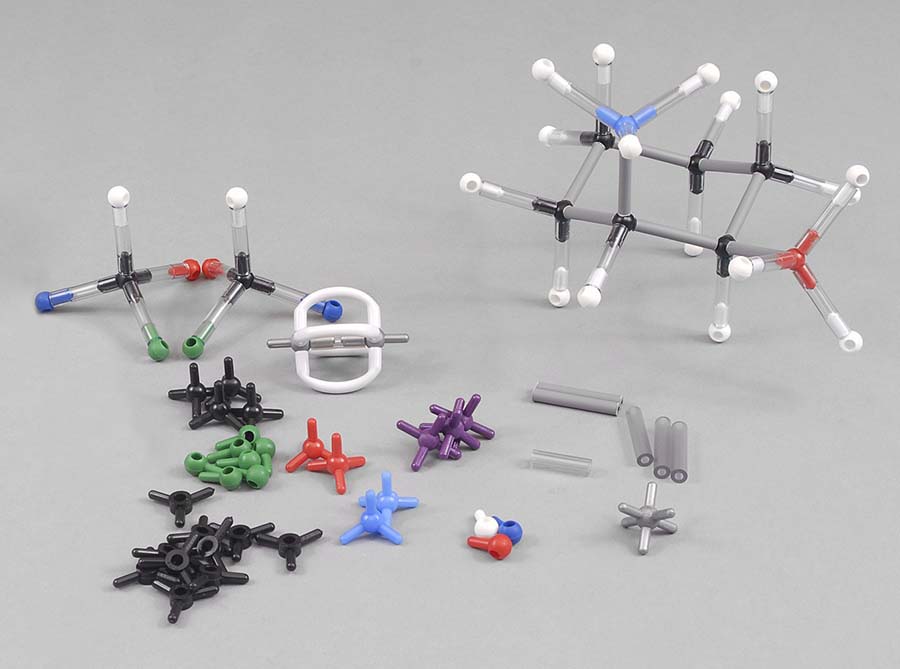

ORGANIC STEREOCHEMISTRY (Large)
ORG-3Kit Contents:
12 black 4-peg carbon atom centers
10 black 3-peg carbon atom centers
3 red 4-peg atom centers
3 blue 4-peg atom centers
3 red 1-peg atom centers
8 green 1-peg atom centers
3 blue 1-peg atom centers
18 white 1-peg hydrogen atom centers
3 silver 6-peg atom centers
3 purple 5-peg atom centers
26-1.25" PVC, clear bonds (single bonds)
2-0.82" PVC, clear bonds (sigma bonds)
4-2" white bonds (pi bonds)
10-1.25" grey, rigid bonds (rotating bonds)
Instructions

Students can use the accompanying 30 page booklet and the model parts, in class or on their own, to learn stereochemistry. Included are 15 exercises: for example; Eclipsed and staggered conformers, Ring strain, Equatorial and axial positions (in cyclohexane), Chirality, Determining (R) and (S) forms, Diastereomers, Meso compounds, to name a few.

This kit is an expanded version of ORG-2, made larger by the inclusion of parts enabling students to compare sp3, sp2, and sp bonding, and to make aromatic rings with trigonal planar atom centers.
$20.00
